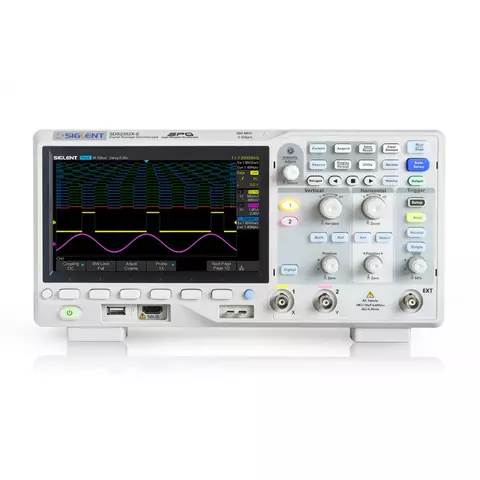

Super Phosphor Oscilloscope SIGLENT SDS2352X-E
id: 887345
Super Phosphor Oscilloscope SIGLENT SDS2352X-E
Overview
Description
Specifications
Delivery
Payment
Warranty
Discontinued
Overview
9 kg Warranty: 36 months
Desktop 2-channel phosphor digital oscilloscope with 350 MHz bandwidth, 2 GSa/s real-time sample rate, 28 Mpts memory, 7.0" display and up to 400,000 waveforms/sec capture rate. Read more
Discontinued
You may also like
Desktop 2-channel phosphor digital oscilloscope with 200 MHz bandwidth, 2 GSa/s real-time sample rate, 28 Mpts memory, 7.0" display and up to 400,000 waveforms/sec capture rate.
Availability in stock:
HK
ID: 887344 6 kg
Description
SIGLENT SDS2352X-E is a desktop 2-channel super phosphor digital oscilloscope with 350 MHz bandwidth, 2 GSa/s real-time sample rate, 28 Mpts memory that uses a new generation of SPO technology. With its excellent signal fidelity, background noise is lower than similar products in the industry. It has a minimum vertical input range of 500 μV/div, an innovative digital trigger system with high sensitivity and low jitter, and a waveform capture rate of 400,000 frames/sec (sequence mode).
Features
- Real-time sampling rate up to 2 GSa/s (1 GSa/s per channel, if both channels active)
- The newest generation of SPO technology
- Record length up to 28 Mpts
- Digital trigger system
- Intelligent trigger: Edge, Slope, Pulse Width, Window, Runt, Interval, Time out (Dropout), Pattern
- Serial bus triggering and decoding (standard), supports protocols IIC, SPI, UART, CAN, LIN
- Video trigger, supports HDTV
- Low background noise with voltage scales from 500μV/div to 10V/div
- 10 types of one-button shortcuts, supports Auto Setup, Default, Cursors, Measure, Roll, History, Display/Persist, Clear Sweep, Zoom and Print
- History waveform rec. function (max rec. waveform length is 80k frames)
Technical Specifications
| Model | SDS2202X-E | SDS2352X-E |
| Bandwidth | 200 MHz | 350 MHz |
| Sampling Rate (Max.) | 2 GSa/s | 2 GSa/s |
| Channels | 2CH+EXT | 2CH+EXT |
| Memory Depth (Max.) | 14 Mpts/CH (not interleave mode); 28 Mpts/CH (interleave mode) | |
| Waveform Capture Rate (Max.) | 110,000 wfm/s (normal mode), 400,000 wfm/s (sequence mode) | |
| Trigger Types | Edge, Slope, Pulse width, Window, Runt, Interval, Dropout, Pattern, Video | |
| Serial Trigger (Standard) | I2C, SPI, UART, CAN, LIN | |
| Decode Type (Standard) | I2C, SPI, UART, CAN, LIN | |
| Display | 7 inch TFT–LCD (800 x 480 pixels) | |
| Dimensions | 312 × 133 × 151 mm | |
| Weight | 2.6 kg | |
Video
Data Sheet
Download SIGLENT SDS2352X-E Data Sheet.
User Manual
Download SIGLENT SDS2352X-E User Manual.
Package Contents
- SIGLENT SDS2352X-E Super Phosphor Oscilloscope — 1 pc.
- Passive Probe — 2 pcs.
- USB Cable — 1 pc.
- Power Cord — 1 pc.
- Quick Start Guide — 1 pc.
Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
