Two-pole Voltage and Continuity Electrical Tester Fluke T110
id: 890494
USA brand
0.5 kg Warranty: 12 months
Tester designed for measuring AC/DC voltage, determining the DC lines polarity, and performing diode and continuity test. Read more
Inform of price reduction
You may also like
Fluke T110 is a safe and ergonomic two-pole voltage and continuity electrical tester designed for use in a wide variety of environments. You may use it to measure up to 690 V DC/AC voltage, determine the DC lines polarity, perform diode and continuity test, and also to detect the sequence of phase change in three-phase systems with simultaneous monitoring of the phase-to-phase voltage.
The device is equipped with a clear audible and vibrating voltage indicator. The audio signal may be turned off if necessary. Also, the device is equipped with a special indicator warning of overvoltage of 50 V. The warning is duplicated by an audible signal.
Features
- CAT IV 600 V, CAT III 690 V safety rating.
- Four ways to indicate AC/DC voltage: LED, audible, and vibrating indicator, and also digital display.
- Backlit graduated scale and backlit indicators.
- Audio on/off for testing in quiet areas.
- Low battery indicator.

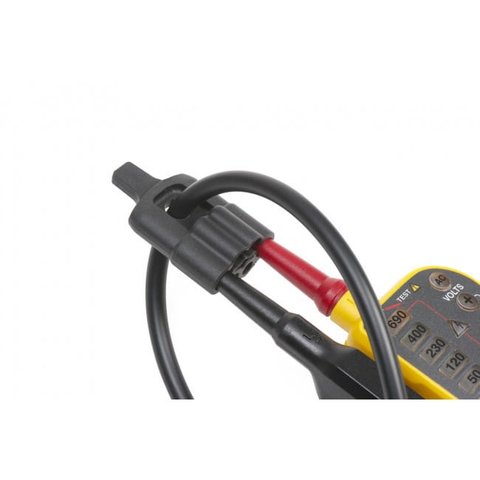

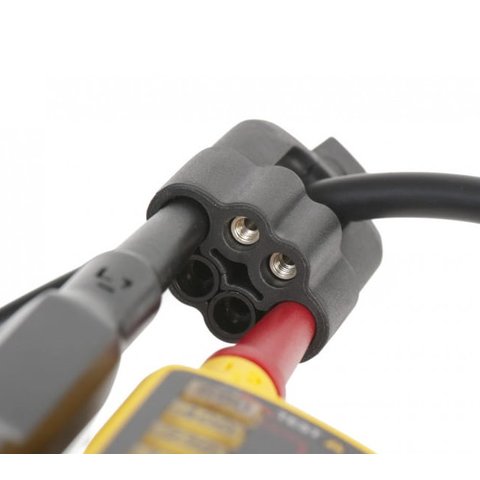

- Improved probe docking for secure storage.
- Phase rotation indicator for 3-phase systems.
- RCD test function.
- Built-in electric torch.
- Single-pole phase test offers fast identification of live conductors.
- Push-on probe tips included (tip protector serves as an extra hand when opening UK electrical safety outlets).
Technical Specifications
LEDs | |
Voltage range | 12 V to 690 V ac/dc |
Resolution | ±12 V, 24 V, 50 V, 120 V, 230 V, 400 V, 690 V |
Tolerance | Complies with EN 61243-3:2014 |
Frequency range | 0 / 40 Hz to 400 Hz |
Response time | ≤0.5 second |
Auto power on | ≥12 V ac/dc |
Voltage detection | Automatic |
Polarity detection | Full range |
Range detection | Automatic |
Internal basic load impedance Peak current |
Maximum 3.5 mA at 690 V 200 kΩ / Is <3.5 mA (no RCD tripping) |
Operation time | 30 seconds |
Recovery time | 240 seconds |
Switchable Load | ~7 kΩ |
Peak current | Is (load) = 150 mA |
RCD tripping | I~30 mA @ 230 V |
Continuity Test | 0 to 400 kΩ |
Accuracy | nominal resistance +50 % |
Test current | ≤5 µA |
Single-pole Phase Test | 100 V ac to 690 V ac |
Frequency range | 50 Hz to 400 Hz |
Rotary Field Indication | + |
Voltage range (LEDs) | 100 V to 690 V (phase to earth) |
Frequency range | 50 Hz to 60 Hz |
General Specifications | |
---|---|
Pollution degree | 2 |
Protection degree | IP64 |
Operating Temperature | -15 °C to +45 °C |
Storage Temperature | -20 °C to +60 °C |
Humidity | 85 % RH maximum |
Altitude | 2000 m |
Power supply | 2 × 1.5 V Micro / LR03 / AAA |
Power consumption | 50 mA maximum / ~250 mW |
Dimensions (H×W×L) | 245 mm × 64 mm × 28 mm |
Weight (includes batteries) | 0.18 kg |
Video
User Manual
Download Fluke T110 User Manual.
Package Contents
Standard Package
- Two-pole Voltage and Continuity Electrical Tester Fluke T110 — 1 pc.
- GS38 Probe Tip Sheath — 1 pc.
- 4 mm ∅ Probe Extensions — 1 set.
Optional Accessories (sold separately)
- H15 Belt Holster — 1 pc.
- C150 Zippered Soft Carrying Case — 1 pc.
