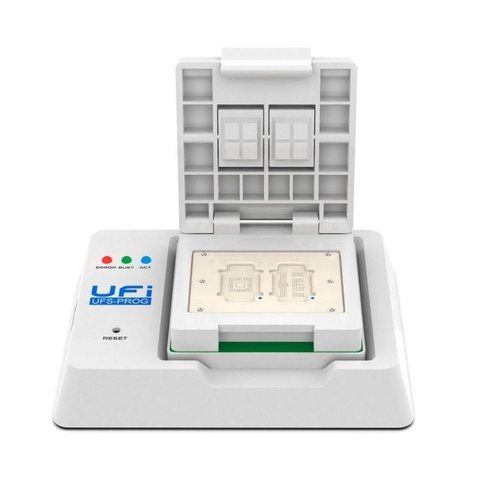

UFI UFS-Prog

An add-on interface for UFI-Box intended for working with UFS memory via ISP pinouts.

Please note! This UFI UFS-Prog interface must be connected to UFI Box in order to work.

How to Activate UFS Toolbox

Features

• USB 3.1 Gen 1 (5 Gbps)
• Supported protocol up to UFS 2.2
• Supported up to PWM Gear 4 and High-Speed (HS) mode 3 x 1 line
• High speed data transfer:
  • Reading: up to 120 MBps
  • Writing: up to 80 MBps
• Reading/Writing UFS registers (flags, attributes, descriptors)
• Reading/Writing UFS LUNs and RPMB partition
• User-friendly software

Supported OS:

• XP x32 (partialy compatible), 7(x32/x64), 8(x64), 10(x64), 11 (not tested)

Package Content

• UFS Tool Box - 1 pc.

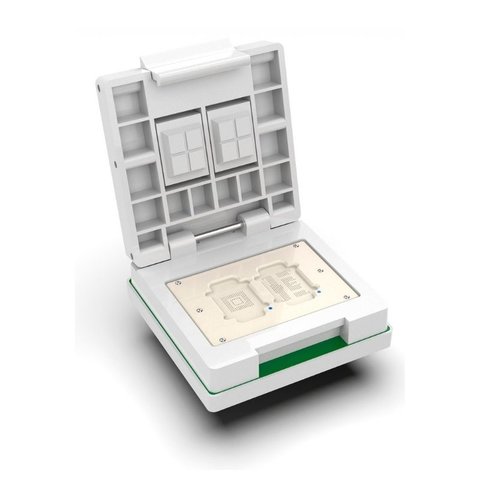

• UFS 2 in 1 Socket Adapter (BGA254, BGA153) - 1 pc.
• UFS ISP Adapter - 1 pc.
• USB Data Cable - 1 pc.

* Developer provides support only for those phones which are on the list of supported. Not all servicing features can be applied to some supported models, due to difference of hardware / software versions. Complete list of supported models you can find on the official product page, or on the GSM forum.

Due to the onrush of technology and efforts to meet every customer's demands, the supplier retains the right to change some positions in the list of cables and accessories coming together with the product. Therefore, the package content presented above is rather tentative. More details on the matter can be obtained from our sales managers.
