Overview
0.7 kg Warranty: 24 months
Flex clamp sensor with a clam opening of 45.7 cm and a range of 1.5 to 3000 A for high current measurements in restricted spaces Read more
Inform of price reduction
Description

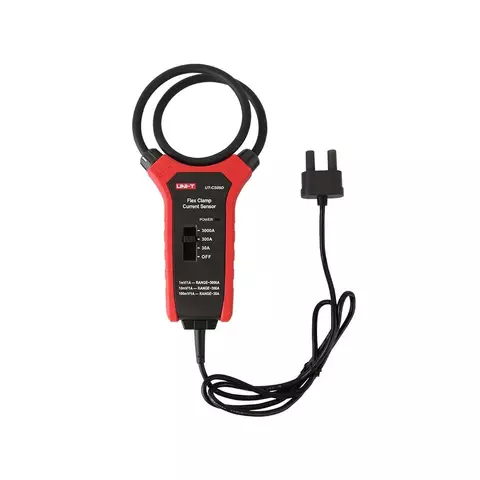

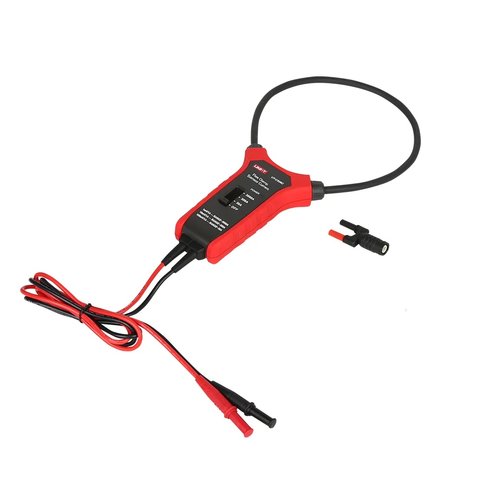

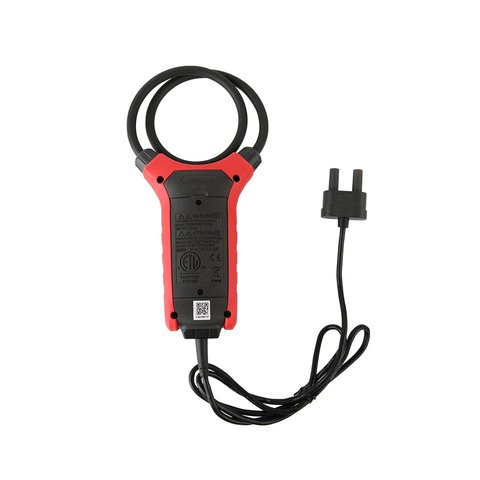

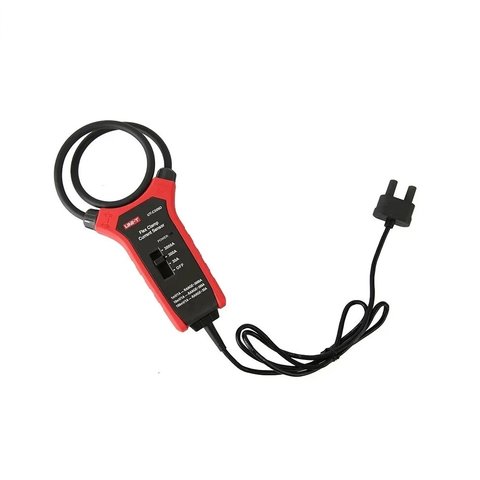

UNI-T UT-CS09D Flex clamp sensor with a Rogowski coil based current sensor can measure high currents within the range 1.5 to 3000. Lightweight, small-sized, and versatile, it is designed specifically for measurements in limited-access spaces and will be especially useful for professional electricians.
Features
- Current measurement range: 1.5 A to 3000 A
- Reliable terminal connection
- Displays current immedately upon connection to UNI-T UT206B/208B
- Comes with a BNC adapter
- Low battery indication at c 3.3 V
- Certified to be 1 m drop proof
Specifications
| Operating Specifications | |||
|---|---|---|---|
| AC current | Range | Resolution | Corresponding voltage |
| 30 A | 0.1 A | ~100 mV/1 A | |
| 300 A | 1 A | ~10 mV/1 A | |
| 3000 A | 10 A | ~1 mV/1 A | |
| Accuracy | ±(3%+5) | ||
| Frequency response | 45 ~ 500 Hz | ||
| Technical Specifications | |||
| Flex clamp size | 45.7 cm (18 in) | ||
| Operating temperature | 0°C ~ 50°C | ||
| Power supply | 1.5 V battery (R03) × 3 | ||
| Size | 267 × 119.4 × 34 mm | ||
| Weight | 260 g | ||
| Category rating | CAT IV 600V | ||
User Manual
Download UNI-T UT-CS09D Flex Clamp Sensor User Manual
Package Contents
- UNI-T UT-CS09D Flex clamp sensor — 1 pc.
- BNC adapter — 1 pc.
- User manual — 1 pc.
Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
