Overview
1 kg Warranty: 24 months
Low-power handheld 1000A 4000-count AC digital clamp meter with full-range overload protection circuit and updated design Read more
Inform of price reduction
Description

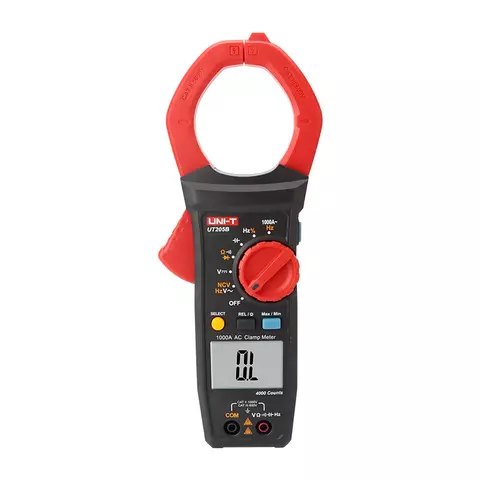

UNI-T UT205B is a reliable 1000A AC clamp meter with a wide range of measurement functions, a large 60 mm jaw opening, a lightweight design, and backlight/flashlight functions to facilitate operations in poorly lit environments. The UT205B supports relative measurement mode, duty cycle, NCV, MAX/MIN functons.
Features
- Measurement functions: AC current, AC/DC voltage, resistance, frequency, capacitance, duty cycle, diode test, conductivity test;
- Quick measurement times: 2 - 3 s;
- Large capacitance measurement range (60 nF - 60 mF);
- Fast response time for capacitance measurement: less than 6 s for ≤1 mF and 8 s for ≤ 60 mF;
- Current frequency monitoring function;
- Full-featured false detection protection for up to 600 V (30 kVA) energy surges;
- Overvoltage and overcurrent alarm functions;
- An automatic power-saving function, extending battery life for up to 200 hrs;
- Lightweight and compact
Technical Specifications
| Parameter | Range | Accuracy |
| AC current (A) | 1000 A | ±(1.5%+5) |
| ACA frequency (Hz) | 40 Hz~1 kHz | ±(1.0%+5) |
| AC voltage (V) | 1000 V | ±(1.0%+2) |
| ACV frequency (Hz) | 10 Hz~10 kHz | ±(1.0%+5) |
| DC voltage (V) | 1000 V | ±(0.8%+2) |
| Resistance (Ω) | 40 MΩ | ±(2.5%+5) |
| Capacitance (F) | 40 mF | ±(10%) |
| Frequency (Hz) | 10 Hz~10 MHz | ±(0.1%+4) |
| Duty cycle | 0.1%~99.9% | ±(3.0%+5) |
| Display count | 4099 | |
| Display | LCD, 42 × 30 mm | |
| Jaw opening | 60 mm | |
| NCV | Yes | |
| Continuity testing | Yes | |
| Diode test | Yes | |
| Max/Min | Yes | |
| Relative mode | Yes | |
| Data hold | Yes | |
| Backlight | Yes | |
| Flashlight | Yes | |
| Auto power off | 15 min | |
| Low battery indication | Yes | |
| Overvoltage category | CAT II 1000V/CAT III 600V | |
User Manual
Download UNI-T UT205B User Manual.
Package Contents
- UNI-T UT205B clamp meter — 1 pc.
- Test leads — 1 pair
- User manual — 1 pc.
- Carrying bag — 1 pc.
Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
