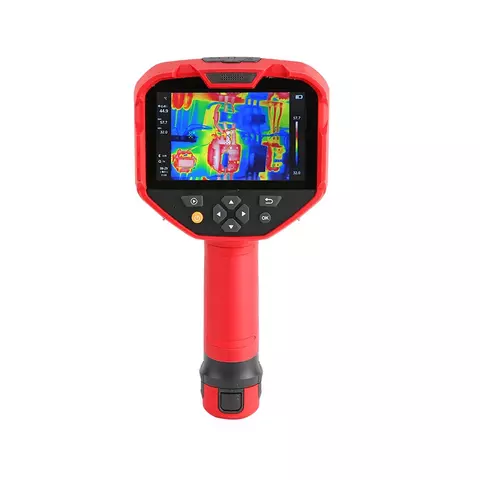

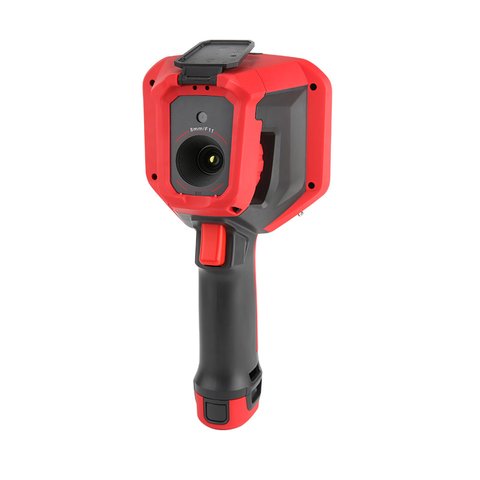

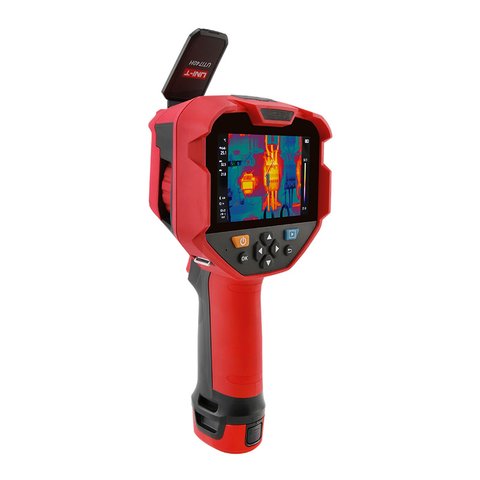

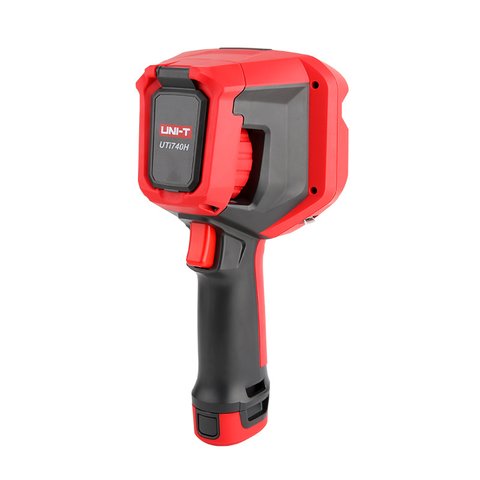

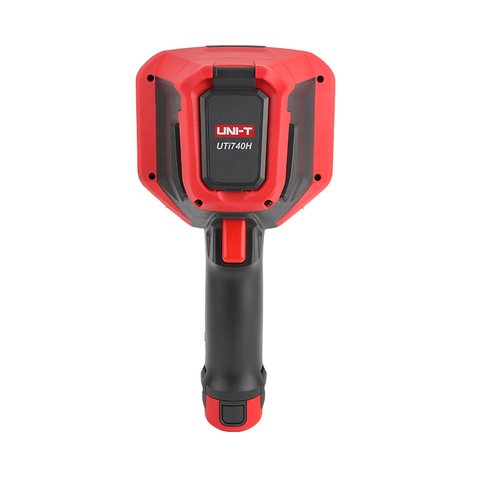

UTi740H Thermal Camera
id: 912311
4.13 kg Warranty: 24 months
A professional thermal camera for industrial use with a 4.3-inch IPS display and 5MP digital camera with a manual focus lens Read more
Inform of price reduction
UNI-T UTi740H is a professional enhanced thermal camera with a broad temperature range of-30°C to 650°C designed for industrial applications. UNI-T UTi740H is equipped with a large 4.3'' IPS display that can display 384×288 IR resolution and a high-quality 5MP digital camera with a manual focus lens that can adjust the focal length depending on the object’s distance. Additional features include Wi-Fi capability, isotherm, on-screen analyzer.
Features
- Temperature measurement range: -30°C to 650°C;
- On-screen analyzer: 5 points, 1 line, 5 rectangles, 5 circles;
- 5MP digital camera resolution with a manual focus and 2X and 4X digital zoom;
- Image modes: thermal, visual image, fusion, PIP;
- PC software for real-time image projection and analysis;
- Hi/Lo temperature alarm;
- Auto and manual isotherms;
- 5200 mAh replaceable Type-C rechargeable battery pack;
- IP54 protection and 2 m drop proof;
- Seven color palettes
Technical Specifications
Technical Data | |
---|---|
Temperature measurement range | -30°C ~ 650°C |
Display | 4.3 inch, IPS (800 × 480) |
IR resolution | 384 × 288 pixels |
Field of view | 28° × 21° |
Thermal sensitivity (NETD) | ≤60 mK |
Spatial resolution (IFOV) | 1.3 mrad |
Frame rate | ≤25 Hz |
Spectral range | 8 ~ 14 µm |
Focus | Manual |
Accuracy | -20°C ~ 650°C, ±2°C or ±2% whichever is greater (ambient temperature at 25°C) |
Emissivity | 0.01~1.00 adjustable (0.95 default) |
Functions | |
Digital camera resolution | 5 MP |
Digital zoom | 2X, 4X |
Isotherm | Auto/Manual |
Image modes | Thermal, visual image, fusion, PIP |
On-screen analyzer | 5 points, 1 line, 5 rectangles, 5 circles |
Color palettes | White hot, black hot, red hot, ironbow, rainbow HC, rainbow, lava |
General Data | |
Image/Video storage format | BMP |
Storage | 32G Micro SD card |
Battery | Detachable Li-ion battery pack (3.7 V, 5200 mAh) |
Battery operation time | 5 hrs (with Wi-Fi off) |
Weight | 805 g |
Size | 266 × 127 × 136 mm |
Shipment weight | 4.13 kg |
User Manual
Download UNI-T UTi740H Enhanced Thermal Camera User Manual.
Package Contents
- UNI-T UTi740H enhanced thermal camera — 1 pc.
- Li-ion battery pack — 1 pc.
- Type-C USB cable — 1 pc.
- Hand strap — 1 pc.
- User manual — 1 pc.
Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
