Overview
0.2 kg Warranty: 12 months
Detector for non-contact voltage detection with 2 operating modes: low (24-1000 V) and high (90-1000V) voltage for checking three-phase and industrial installations Read more
Inform of price reduction
Description

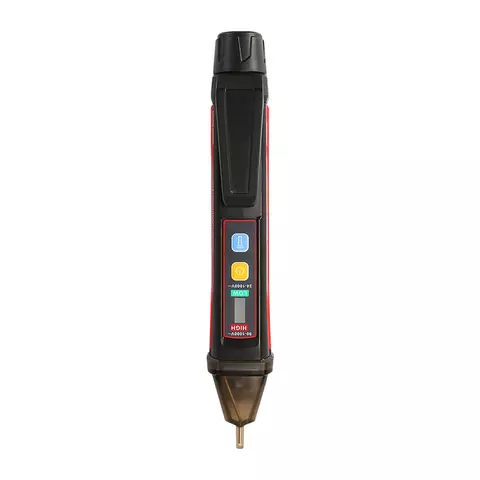

UNI-T UT12E-EU is a CAT IV 1000V two-mode non-contact AC voltage detector with a built-in flashlight and acousto-optic synchronous alarm function that can operate in low and high voltage modes. The low voltage mode (24-1000 V) can be used in the maintenance of low voltage equipment such as conductors, cables, sockets, and other electrical instruments and electronic appliances, while the high-voltage mode (90-1000V) is suitable for inspecting three-phase and industrial-scale installations such as urban electric supply systems, power distributon units, electrical panels. UNI-T UT12E-EU is particularly handy and useful for electricians and maintenance specialists.
Features
- High/Low voltage modes
- Non-contact AC voltage detection
- Alarm modes: audio (buzzer), visual (LED indication), vibration
- Built-in flashlight
- Auto power off
- Low battery indication
- IP67 dust/water resistant
- 2 m drop test
- Double injection molding
Technical Specifications
| AC voltage (Low) | 24 ~ 1000 V |
| AC voltage (High) | 90 ~ 1000 V |
| Frequency range | 50/60Hz |
| Safety class | CAT IV 1000V |
| Operating temperature | 0 ~ 40°C |
| Storage temperature | -20 ~ 50°C |
| Altitude | below 2000 m |
| Power | 1.5V AAA battery × 2 |
| Size | 160.5 × 21.5 × 25 mm |
| Weight | 72 g |
User Manual
Download UNI-T UT12 Series AC Voltage Detector User Manual.
Package Contents
- UNI-T UT12E-EU voltage detector — 1 pc.
- 1.5V AAA battery — 2 pcs.
- User manual — 1 pc.
Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
