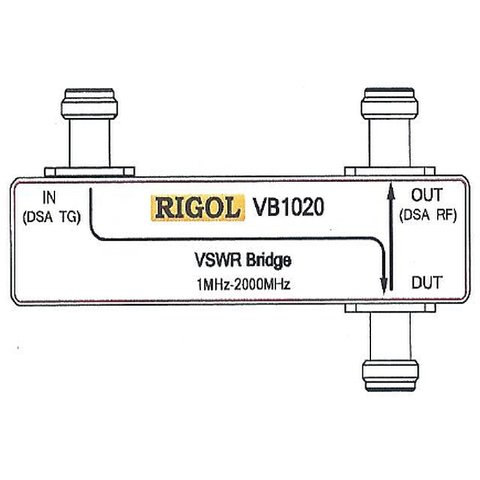

VSWR Bridge Rigol VB1020
Overview
Description
Specifications
Delivery
Payment
Warranty
Discontinued
Overview
0.5 kg Warranty: 36 months
VSWR Bridge option to be installed in Rigol DSA815/DSA815-TG Spectrum Analysers. Frequency range: 1 MHz to 2 GHz. Read more
Discontinued
Description
Rigol VB1020 is a VSWR Bridge option to be installed in Rigol DSA815/DSA815-TG Spectrum Analysers.
Applications
- Measurement of the S11-related parameters of the filter, amplifier, mixer, etc.
- Resonant frequency and VSWR tests of the antenna.
Technical Specifications
| Frequency range | 1 MHz to 2 GHz |
| Connector type | N (Female) Type |
| Adaptor | Dual N (Male) Type |
| Impedance | 50 Ω |
| Maximum Input Power | +27 dBm (0.5 W) |
| Operation Temperature | -20 ℃ to 80 ℃ |
| Storage Temperature | -40 ℃ to 100 ℃ |
| Dimensions | 130 mm × 75 mm × 30 mm |
| Weight | 0.5 kg |
Compatibility
Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
All rights reserved. This material from gsmserver.com web site may not be published, rewritten or redistributed in whole or part without authorship indicated and backlinks provided.
Specifications
| VSWR Bridge is compatible with the following models of Spectrum Analyzers |
|
| Frequency range |
|
