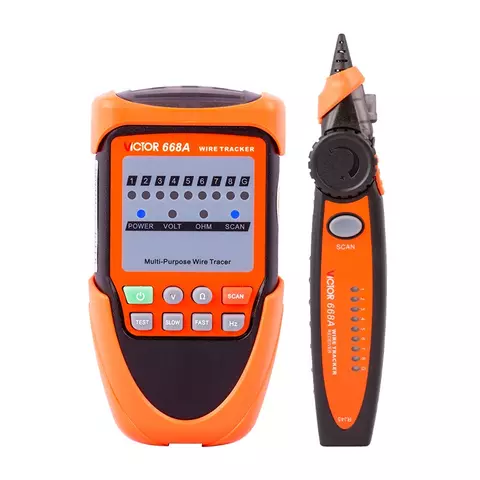

Wire Tracker VICTOR 668A
Overview
Description
VICTOR 668A is a safe and versatile digital network cable tester designed to scan for, track and trace line signals, while generating a low level of interference and noise. VICTOR 668A has a number of functions, including the line-hunting feature, which enables the measurement of the parameters of communication lines, such as resistance, capacitance, and inductance. This function can also be used to determine the distance to a circuit break and to evaluate signal quality and signal loss in cables.
The maximum cable length that can be tested with this tester is 3000 m. Adjustable tone-sensitivity allows you to adjust the volume level of the cable tester in line with the specifications of the cable under test and the requirements of a specific job.
To ensure convenient operation in noisy environments, the tester is equipped with a headset output and comes with a headset included. VICTOR 668A has a bright backlight for trouble-free operation in dark environments.
VICTOR 668A is an essential helper in the design and maintenance of communication networks and electrical equipment of buildings.
Features
- Line scanning and analog signal tracing;
- Testing cable networks for sequence, open and short circuits;
- Weak current-turn on test, withstanding voltage of up to 48 V;
- Can be connected to phone lines, Ehernet switches, routers, PCs, etc.;
- Cabaple of line-hunting provided the terminal is powered on;
- Headset function for use in noisy environments;
- Display backlight
Technical Specifications
| Analog signal tracing | + |
| Line scan | + |
| Open-circuit test | + |
| Line voltage | + |
| Adjustable sensitivity | + |
| Torch | + |
| Display | LEDs |
| Line scan distance | 3000 m |
| Output signal level | Approx. 23 V p-p (frequency adjustable) |
| Other functions | energy saving design low voltage detection headset |
| Packaging | storage bag, supplied in a cardboard box |
| Current parameters | electric current transmission: ≤45 mA electric current detection: ≤100 mA |
| Power supply | receiver: 9V laminated battery transmitter: 1.5V AAA battery × 3 |
| Safety | safe to use (the probe may come in direct contact with uninsulated metal wire) |

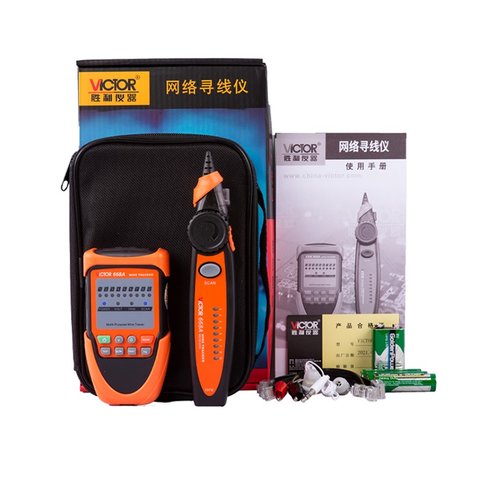

Package Contents
- VICTOR 668A cable tester:

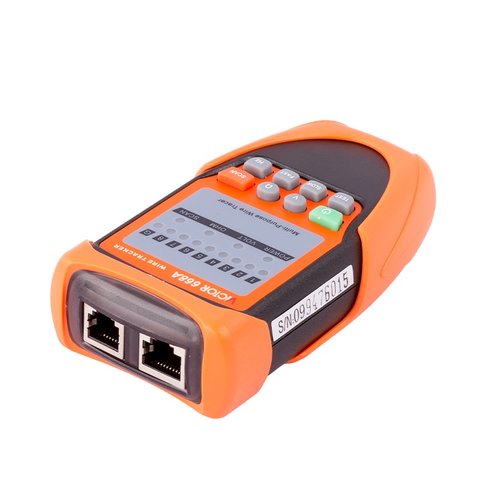

- Transmitter — 1 pc.

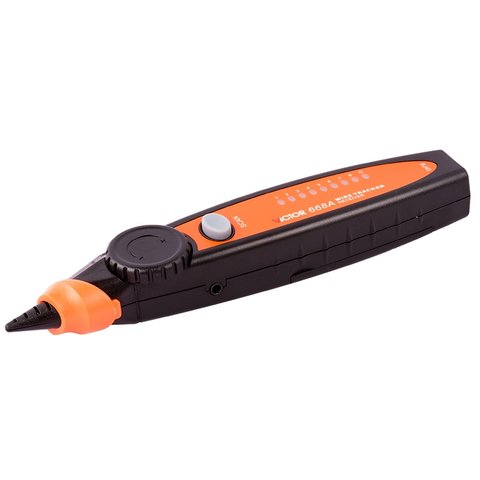

- Receiver — 1 pc.
- User guide — 1 pc.
- 9V battery — 1 pc.
- 1,5V AAA battery — 3 pcs.
- RJ-11 connector — 1 pc.
- RJ-45 connector — 1 pc.
- Adapter cable with two crocodile clips — 1 pc.
- Headset — 1 pc.
Specifications
| USB Cable Testing |
|
| Twisted pair cable testing |
|
| Coaxial cable testing |
|
| Locator function |
|
