Pocket Digital Multimeter UNI-T UT131C
id: 883719
0.4 kg Warranty: 24 months
Measures DC/AC voltage, DC current, resistance and temperature. Diode testing, continuity buzzer. Manual range selection. Read more
Inform of price reduction
You may also like
Frequently bought together

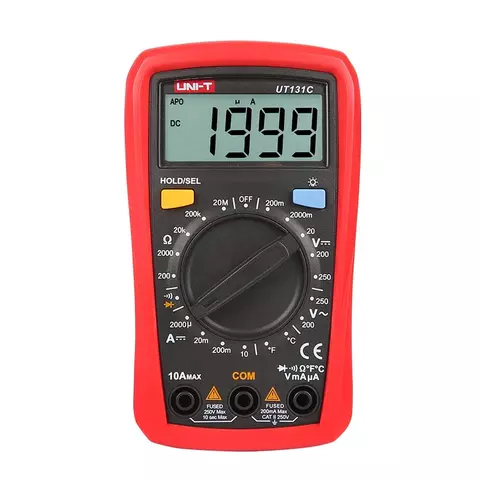

UNI-T UT131C is a pocket digital multimeter. It is used for DC/AC voltage, DC current, resistance and temperature measuring, as well as diode testing. Its innovative industrial design ensures that the multimeter can withstand 2 meters drop.
Features
- Compact and lightweight multimeter, perfect for carrying in the toolbox or pocket.
- Testing & measurement functions:
- DC/AC voltage;
- DC current;
- resistance;
- temperature;
- diode testing;
- continuity.
- Continuity buzzer.
- Comfortable protective cover with test lead holder.
- 2 m drop proof.
- Ergonomic design.
- Auto power off.
- Auto backlight off.
- Manual range selection.
Technical Specifications
Function | Range | Accuracy |
---|---|---|
DC voltage | 200 mV~ 250 V | ±(0.5%+2) |
AC voltage | 200 V ~ 250 V | ±(1.2%+3) |
DC current | 2000 μA ~ 10 A | ±(1%+2) |
Resistance | 200 Ω ~ 20 MΩ | ±(0.8%+2) |
Temperature | -40°C ~ 1000°C | ±(1%+4) |
‒40°F ~ 1832°F | ±(1.5%+5) | |
General Specifications | ||
Power | 1.5 V battery (R03) × 2 | |
Display | 2000-count LCD, 66 × 51 mm | |
Dimensions | 131 × 95 × 58 mm | |
Weight | 300 g |
Video
You'll find even more video reviews in the Video tab. Go and check it out!
User Manual
Download UNI-T UT131C user manual.
Package Contents
- Pocket Digital Multimeter UNI-T UT131C — 1 pc.
- Test leads — 2 pcs.
- Temperature probe — 1 pc.
- User manual — 1 pc.
Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
