Digital Oscilloscope OWON SDS1022
id: 887992
Digital Oscilloscope OWON SDS1022
Overview
Description
Specifications
Delivery
Payment
Warranty
USD 180.00
Overview
2 kg Warranty: 12 months
2-channel desktop digital oscilloscope with 20 MHz bandwidth, 100 MSa/s sample rate, 10K pts wavelength, 8 bits vertical resolution. Read more
USD 180.00
Buy wholesale and save
You may also like
ID: 915162

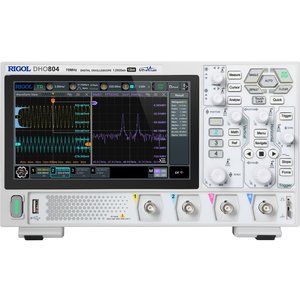

Digital Oscilloscope RIGOL DHO804
USD 399.00
4-channel oscilloscope with a 70 MHz bandwidth, 1.25 GSa/s sample rate, 12-bit A/D converter, 25 Mpts memory depth, and a 17.8 cm touch display with 1024x600 pixels.
Availability in stock:
HK
ID: 915162 3 kg
Description

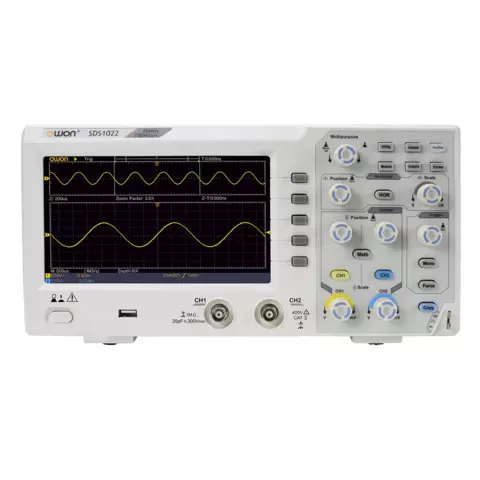

OWON SDS1022 is a desktop digital oscilloscope. The 2-channel device at an affordable price with 20 MHz bandwidth, 100 MSa/s sample rate and 10K pts wavelength. OWON SDS1022 has a simplified synchronization system which supports two trigger types: level and edge. Designed to solve problems that do not require large amounts of memory and complicated trigger types.
Features
- 20 MHz bandwidth.
- 2-Channel.
- Sample rate: 100 MSa/s (Real time).
- 10K pts wavelength.
- Display 7" TFT, 800 × 480 pixels.
- Communication Interface: USB.
Technical Specifications
| Bandwidth | 20 MHz |
| Horizontal Scale (s/div) | 5 ns/div - 1000 s/div |
| Channel | 2 |
| Vertical Sensitivity | 5 mV/div - 5 V/div (at input) |
| DC Gain Accuracy | 3% |
| Vertical Resolution (A/D) | 8 bits (2 channels simultaneously) |
| Input | |
| Input Impedance | 1 MΩ, 10 pF |
| Input Coupling | AC, DC, GND |
| Max Input Voltage | ± 400 V, CATI, CATII |
| Passive probes | ×1; ×10 |
| Probe Attenuation Factor | ×1; ×10; ×100; ×1000 |
| Trigger System | |
| Trigger Mode | Auto, Normal, Single |
| Trigger Type | Edge, Video |
| Edge Trigger Source | CH1, CH2 |
| Video Trigger | |
| Sampling Type | real-time |
| Sample Rate | 100 MSa/s |
| Equivalent Sample Rate | no |
| Wavelength | 10K pts |
| Interpolation | sin(x)/x |
| Measurement and Mathematical Treatment System | |
| Automatic Measurement | Vpp, Vavg, RMS, Frequency, Period, Vmax, Vmin, Vtop, Vbase, Width, Overshoot, Pre-shoot, Rise time, Fall time, +Width, -Width, +Duty, -Duty, Delay A→B, Delay A→B, area, cycle area |
| Math Functions | Addition, Subtraction, Multiplication, Division, FFT |
| General Characteristics | |
| Display type | 7" color LCD |
| Display Resolution | 800 × 480 |
| Power | 100-240 V, 45-440 Hz, <15 W |
| Dimensions | 301 × 70 × 152 mm |
| Weight | 1,1 kg |
Package Contents
- Digital oscilloscope OWON SDS1102 — 1 pc.
- Probes — 2 pcs.
- Probe adjust — 1 pc.
- Power cord — 1 pc.
- USB cable — 1 pc.
- Software CD — 1 pc.
- User manual — 1 pc.
- Guarantee card — 1 pc.
Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
