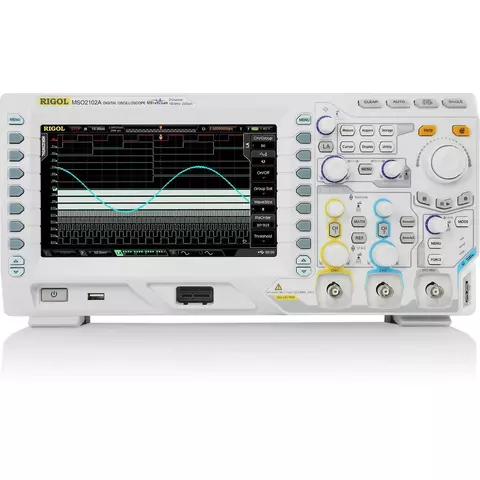

Digital Oscilloscope RIGOL MSO2102A-S
id: 902408
4 kg Warranty: 36 months
2-channel oscilloscope with 100 MHz bandwidth, 2 GSa/s sample rate, and 14 Mpts memory depth, with an integrated 16-channel logic analyzer. Read more
Inform of price reduction
You may also like
RIGOL MSO2102A-S is a high-performance dual-channel desktop phosphor mixed signal oscilloscope with a built-in signal generator, 16-channel logic analyzer, and 100MHz bandwidth. This device is perfect for debugging and diagnosing digital and analog devices.
Features
- Built-in 16-channel logic analyzer for examining correlated analog and digital signals
- Built-in dual-channel signal generator
- Innovative UltraVision technology for high-speed waveform acquisition, long record lengths, and easy waveform navigation
- Great functionality in a small size
- Low noise
Technical Specifications
Bandwidth | 100 MHz | ||
Channels | 2 analog + 16 dgital | ||
Max. Real-time Sample Rate | Analog channel: 2 GSa/s (single-channel), 1 GSa/s (dual-channel) | ||
Digital channel: 1 GSa/s (8-channel), 500 MSa/s (16-channel) | |||
Arbitrary Waveform Generator | 25 MHz (2 channels) | ||
Max. Memory Depth | 14 Mpts (standard), 56 Mpts (optional) | ||
Waveform Capture Rate | up to 50,000 wfms/s | ||
Real-time waveform record, playback and analysis | 65,000 frames | ||
Time Base Scale | 5 ns/div ~ 1000 s/div | ||
Vertical Sensitivity Range | 500 µV/div - 10 V/div | ||
Vertical Resolution | 8 bits | ||
Max. Frequency | 25 MHz | ||
Math Functions | A+B, A-B, A×B, A÷B, FFT, Digital Filter, Editable Advanced Operation, Logic Operation | ||
Output Voltage | About 3 V, peak-peak | ||
Frequency | 1 kHz | ||
General Specifications | |||
---|---|---|---|
Max. Power Consumption | 50 W | ||
Voltage | 100 - 240 V, AC, 50/60 Hz, CAT II | ||
Interface | USB host, USB device, LAN, Aux (TrigOut/PassFail) | ||
Display | LCD, 8" (203 mm), TFT, 800 × 480 | ||
Dimensions (H × W × D) | 361.6 mm × 179.6 mm × 130.8 mm | ||
Weight | 3.9 kg (± 0.2 kg) |
User Manual
Download RIGOL MSO2102A-S user manual.
Package Contents
- Digital Oscilloscope RIGOL MSO2102A-S — 1 pc.
- Probes — 2 pcs.
- LA Probe RPL2316 — 1 pc.
- Power Cord — 1 pc.
- USB Data Cable — 1 pc.
- User Manual — 1 pc.
