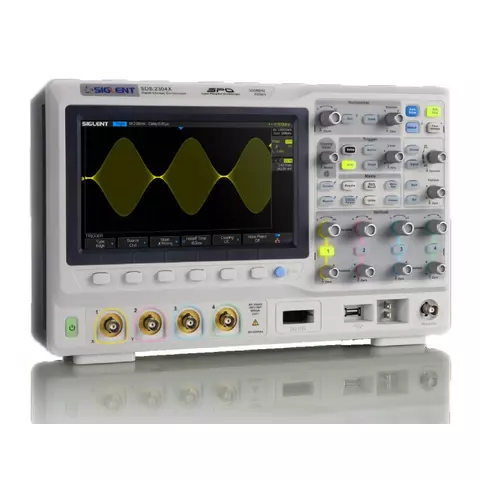

Super Phosphor Oscilloscope SIGLENT SDS2204X
id: 862785
Super Phosphor Oscilloscope SIGLENT SDS2204X
Overview
Description
Specifications
Video
Delivery
Payment
Warranty
Discontinued
Overview
Video
Video
Video
Video
9 kg 110, 220 V Warranty: 36 months
Desktop 4-channel phosphor digital oscilloscope with 200 MHz bandwidth, 2 GSa/s real-time sample rate, 140 MB memory, 8.0" display and up to 60,000 waveforms/sec capture rate. Read more
Discontinued
You may also like
4 channel Super Phosphor Oscilloscop with a 200 MHz bandwidth, a sample rate of 2 GSa/s, a maximum memory depth of 200 MB and a 10.1" display.
Availability in stock:
HK
ID: 893075 9 kg
Description
SIGLENT SDS2204X is a 4-channel Super Phosphor Oscilloscope with a bandwidth of 200 MHz, a sample rate of 2 GSa/s, and a 140 Mpts memory depth.
Features
- New generation of SPO (Super Phosphor Oscilloscope) technology
- Supports statistics calculations, Gating measurement, Math measurement, Ref measurement
- Waveform math function (FFT, addition, subtraction, multiplication, division, integration, differentiation, square root)
- High Speed hardware based Pass/Fail function
- Large 8 inch TFT-LCD display with 800*480 resolution
- Different interfaces: USB Host, USB Device, LAN, Pass / Fail, Trigger Out, GPIB
User Manual
Download SIGLENT SDS2204X User Manual.
Technical Specifications
| SDS2072X | SDS2074X | SDS2102X | SDS2104X | SDS2202X | SDS2204X | SDS2302X | SDS2304X | |
| Channels | 2 | 4 | 2 | 4 | 2 | 4 | 2 | 4 |
| Bandwidth | 70 MHz | 70 MHz | 100 MHz | 100 MHz | 200 MHz | 200 MHz | 300 MHz | 300 MHz |
| Sample Rate (max.) | 2 GSa/s | |||||||
| Memory Depth | 140 Mpts | |||||||
| Math | +, -, *, /, FFT, d/dt ,∫dt,√ | |||||||
| FFT windows | Rectangle, Hanning, Hamming, Blackman | |||||||
| Time base | 1 ns/div to 50 s/div | |||||||
| Display | 20.32 cm (8") WVGA-Color-LCD, 800 × 480 Pixel | |||||||
| Interface | USB Host, USB Device, LAN, Pass/Fail, Trigger Out, GBIP | |||||||
| Size (W × H × D) | 352 × 224 × 112 mm | |||||||
| Weight | 3.4 kg | |||||||
Video
Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
