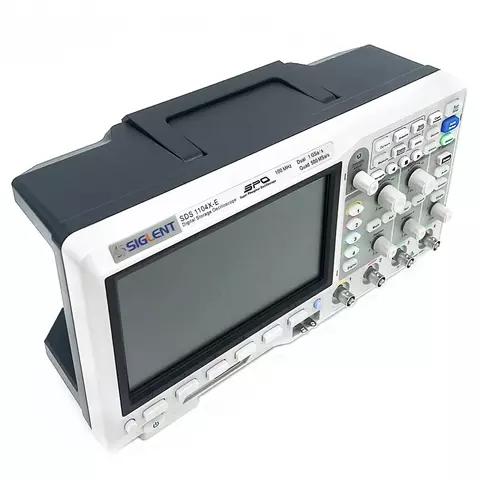

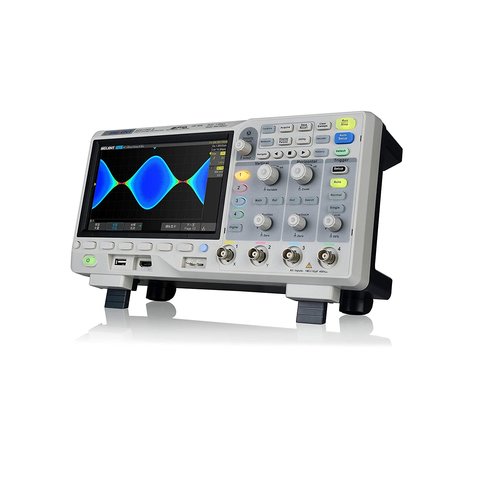

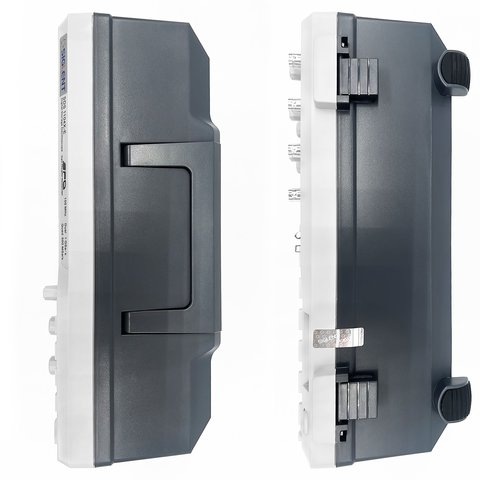

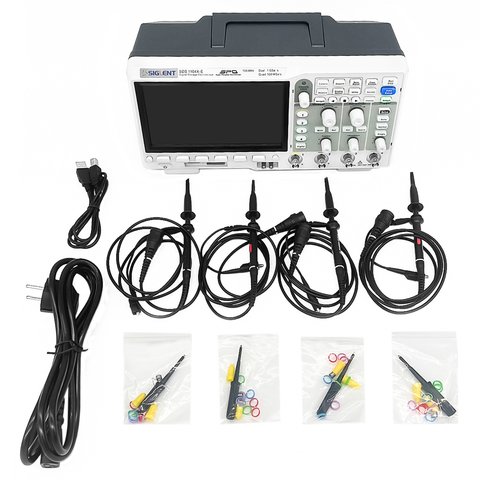

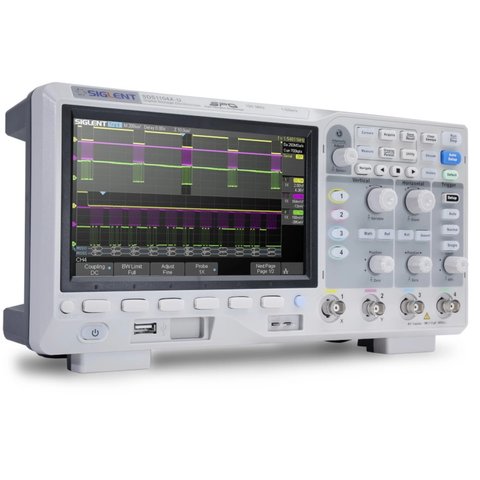

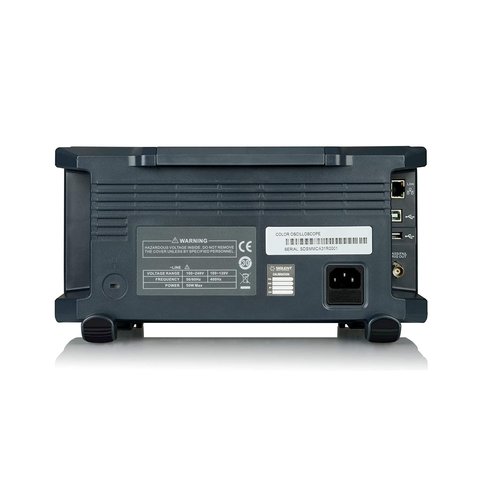

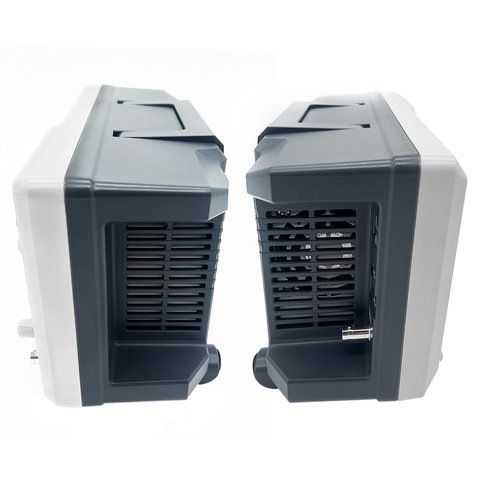

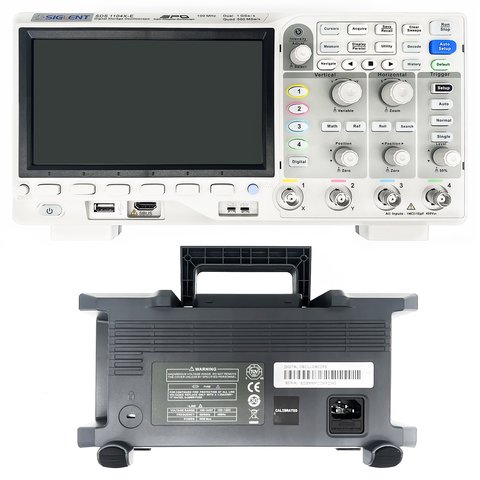

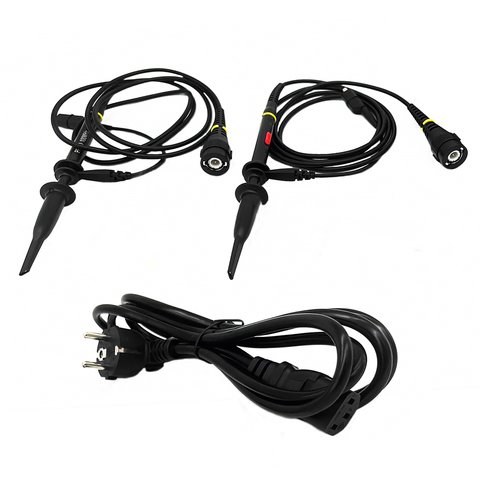

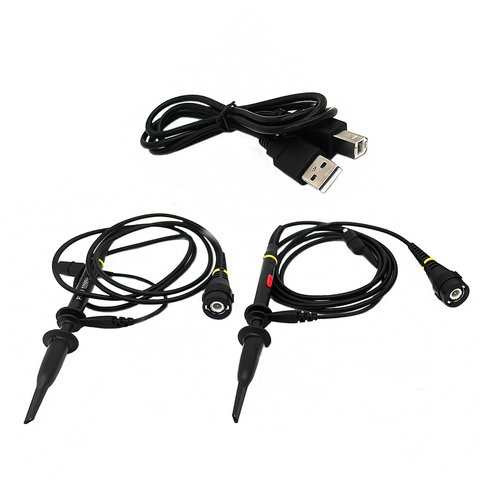

SIGLENT SDS1104X-E is a 4-channel Super Phosphor Oscilloscope with 100 MHz bandwidth, 1 GSa/s sample rate, and a standard record length of 14 Mpts.
| SDS1072X-E | SDS1102X-E | SDS1202X-E | SDS1104X-E | |
|---|---|---|---|---|
| Bandwidth | 70 MHz | 100 MHz | 200 MHz | 100 MHz |
| Channels | 2 + 1 EXT | 2 + 1 EXT | 2 + 1 EXT | 4 |
| Real-time sampling rate | 1 GSa/s | |||
| Memory depth | 14 Mpts/CH (Single-Channel); 7 Mpts/CH (Dual-Channel) | |||
| Waveform capture rate | 400,000 wfms/s (Sequence Mode) | |||
| Trigger types | Edge, Slope, Pulse, Window, Runt, Interval, Time out (Dropout), Pattern, Video | |||
| Vertical resolution | 500 μV/div to 10 V/div | |||
| Math Operators | Addition, subtraction, multiplication, division, FFT, differential, integral, square root | |||
| FFT processing | 1 Mpts | |||
| Auto measurements | 38 types: Statistics calculations, Zoom measurement, Gating measurement, Math measurement, History measurement, Ref measurement | |||
| Decoding | I2C, SPI, UART/RS232, CAN and LIN | |||
| Interfaces | USB Host, USB Device, LAN, Pass/Fail, Trigger Out, Ext Trigger | |||
| Display | 7'' display (800×480 pixels) | |||
| Power | AC 100-240 V, 45 Hz - 440 Hz, 50 VA Max | |||
Download SIGLENT SDS1000X-E Series Quick Start Guide.
Download SIGLENT SDS1000X-E Series User Manual.
Download SIGLENT SDS1000X-E Series Programming Guide.
